Grey Colour 50KW-380V AC Generator Load Bank with Remote Control
Intelligent AC load bank mainly used to test the capability and aging degree for high-power ups on-line, inverter and switch power for electric power, telecom department and manufacturer. It can ensure the reliability of constant power charge that adopts uniformly stepped power input, energy consumption work model and forced air-cooling model. It is of high power density, no red hot phenomenon and automatic protection function overheated. It can’t be overheated and broken when the fans stop working. The complete machine can be operated simply and maintain convenient that adopts module design. It can test voltage and current according to client’s requirements, and provide test reports for high-power AC equipment.
With footprint size an ever vital consideration in many markets, fullde load banks provide higher voltages with integrated transformers & load banks packaged in one ISO container. Available in wide range of voltages from 600v to 33kV in both resistive and resistive-reactive configuration. Fullde will design and build load banks to your exact voltage, frequency and capacity requirements.
Benefits of Load Bank Testing:
• Problems discovered early can be significantly less expensive and prevents future major issues;
• Helps to avoid wet-stacking and cleans out carbon deposits;
• Verifies the engine cooling systems will perform while under load;
• Provides ensure that the genset should work properly when you need it most.
Technical Parameters for reference:
| System components | Load bank, resistive load,data collection, automatic control and manual control, electrical control, cooling devices and auxiliary control,Industrial machines, printer. |
| Resistive load stalls(300KW) | Step: 1KW |
| Test voltage | Three-phase AC480V； |
| Test Frequency | 50Hz； |
| Resistance tube | Insulation resistance of each resistor above DC500V 100MΩ , Pressure AC2000V 1 minute, Resistance to high temperature. |
| Load connection | Star (three-phase four -wire) |
| Loading precision | ±3%； |
| Work way | Continuous work |
| Working power | 480VAC/50Hz/Three-phase four-wire system; (reservation terminals) |
| Operator terminal | IPC / software, full realization of automated control |
| Control mode | Manual control / computer software auto control |
| Measured Control Function | Load subtraction control, extended load automatic identification synchronization control |
| IPC detection function | I, V, HZ, KW, COSΦ etc.Real-time display, electrical performance testing, curves and report output, system electrical parameters monitoring, automatic data acquisition; |
| Parameter record | Form through EXCEL, curves pictures saved by WORD document |
| Parameter display | three-phase voltage, three- phase current, apparent power, active power, reactive power, power factor, frequency, etc.; |
| Load protection | Overvoltage, overcurrent, high temperature, air flow and fan failure protection; |
| Fault alarm | Fan failure, load high temperature alarm |
| Size | 750*850*1600 |
| Weight | 250kg |
| Applicable Scope | For marine diesel generator sets, land diesel generators, power inverters, UPS systems |
Product Tags:
|
|

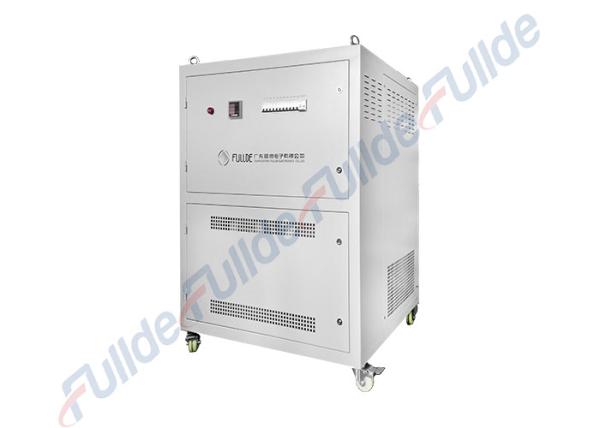

Grey Colour AC Generator Load Bank With Multi - Functional Digital Display Images
|
